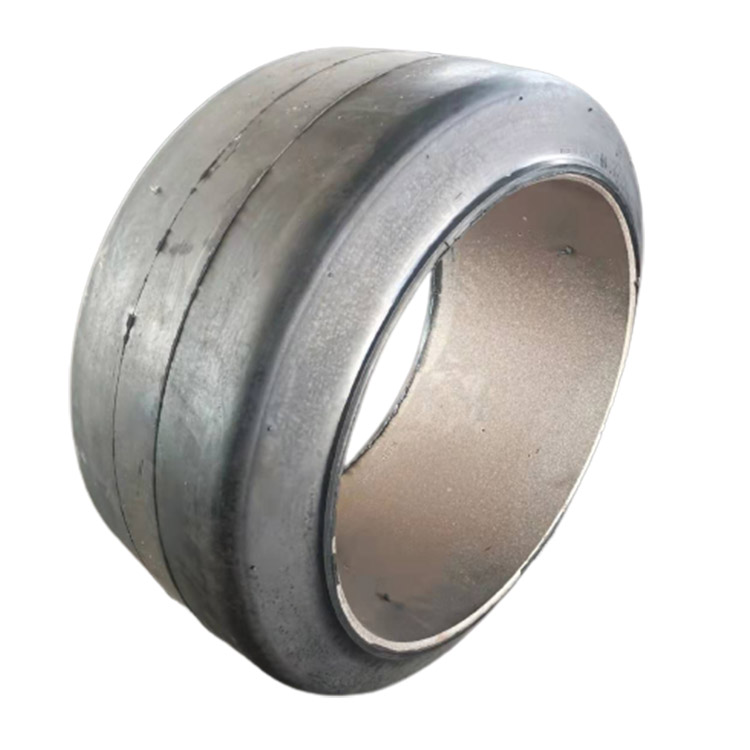

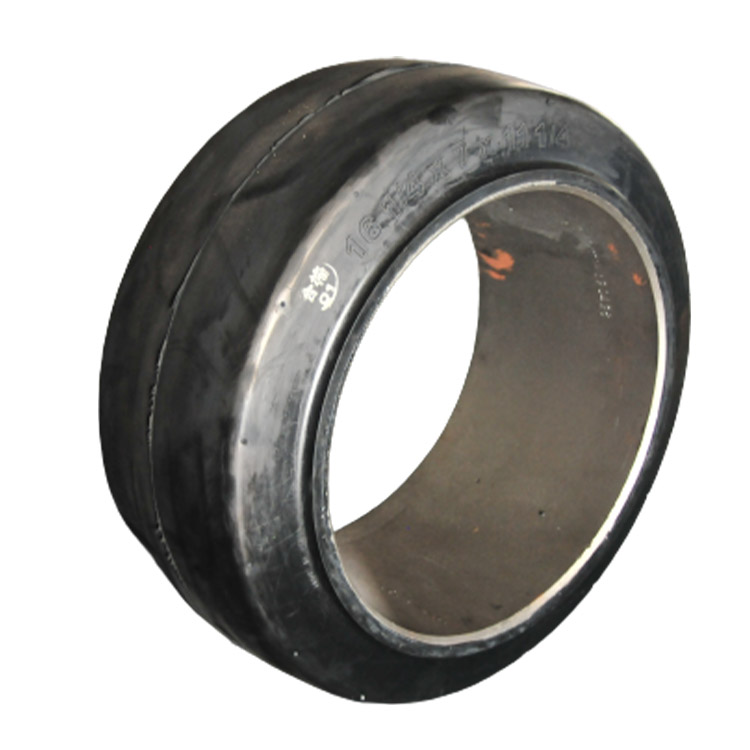

S-SM
High load, low center of gravity, stable operation, suitable for forklift, trailer and flatbed truck
| PRESS-ON SOLID TIRE | ||||
| Size | NM | Pattern | Overall Diameter | Section Width |
| S-SM | mm | mm | ||
| 9X5X5 | √ | √ | 228.6 | 127 |
| 10X4X61/2 | √ | √ | 254 | 101.6 |
| 10X5X6 1/2 | √ | √ | 254 | 127 |
| 10X6X6 1/2 | √ | √ | 254 | 152.4 |
| 10 1/2X5X5 | √ | √ | 266.7 | 127 |
| 101/2X6X5 | √ | √ | 266.7 | 152.4 |
| 101/2X5X61/2 | √ | √ | 266.7 | 127 |
| 101/2X6X61/2 | √ | √ | 266.7 | 152.4 |
| 12X41/2X8 | √ | √ | 304.8 | 114.3 |
| 12X5X8 | √ | √ | 304.8 | 127 |
| 131/2X51/2X8 | √ | √ | 342.9 | 139.7 |
| 14X41/2X8 | √ | √ | 355.6 | 114.3 |
| 15X5X111/4 | √ | √ | 381 | 127 |
| 151/2X5X10 | √ | √ | 393.7 | 127 |
| 151/2X6X10 | √ | √ | 393.7 | 152.4 |
| 16X5X101/2 | √ | √ | 406.4 | 127 |
| 16X6X101/2 | √ | √ | 406.4 | 152.4 |
| 16X7X101/2 | √ | √ | 406.4 | 177.8 |
| 161/4X5X111/4 | √ | √ | 412.8 | 127 |
| 161/4X6X111/4 | √ | √ | 412.8 | 452.4 |
| 161/4X7X111/4 | √ | √ | 412.8 | 177.8 |
| 17X5X121/8 | √ | √ | 431.8 | 127 |
| 18X5X121/8 | √ | √ | 457.2 | 127 |
| 18X6X121/8 | √ | √ | 457.2 | 152.4 |
| 18X7X121/8 | √ | √ | 457.2 | 177.8 |
| 18X8X121/8 | √ | √ | 457.2 | 203.2 |
| 18X9X121/8 | √ | √ | 457.2 | 228.6 |
| 20X8X16 | √ | √ | 508 | 203.5 |
| 21X7X15 | √ | √ | 533.4 | 177.8 |
| 21X8X15 | √ | √ | 533.4 | 203.2 |
| 21X9X15 | √ | √ | 533.4 | 228.6 |
| 22X8X16 | √ | √ | 558.8 | 203.2 |
| 22X9X16 | √ | √ | 558.8 | 228.6 |
| 22X12X16 | √ | √ | 558.8 | 304.8 |
| 28X12X22 | √ | √ | 711.2 | 304.8 |
| 28X14X22 | √ | √ | 711.2 | 355.6 |
| 28X16X22 | √ | √ | 711.2 | 406.4 |
| 36X9X30 | √ | √ | 914.4 | 228.6 |
| 36X10X30 | √ | √ | 914.4 | 254 |
| 36X12X30 | √ | √ | 914.4 | 304.8 |
| 36X14X30 | √ | √ | 914.4 | 355.6 |
| 40X12X30 | √ | √ | 1016 | 304.8 |
| 40X14X30 | √ | √ | 1016 | 355.6 |
| 40X16X30 | √ | √ | 1016 | 406.4 |
